Construction & Material :
| Item | Unit | Specification | ||||
| Conductor | Size | AWG | 30 | 28 | ||
| Material | -- | Silver plated copper | Tinned Copper | |||
| Construction | pcs / mm | 7/0.10±0.005 | 7/0.127 | |||
| Insulation | Material | -- | FEP | FEP | ||
| Nom.thickness | mm | 0.275 | 0.11 | |||
| Diameter | mm | 0.85±0.03 | 0.60±0.03 | |||
| Color | -- | Black | Red Blue Green Black | |||
| Shielding | Type | -- | Spiral | |||
| Material | -- | Tinned Copper | ||||
| Construction | mm | 0.05 | ||||
| Cu-Mylar Shield | Material | -- | Copper Mylar | |||
| Type | -- | Wrapping | ||||
| Covering | Material | -- | PET | |||
| Type | -- | Wrapping | ||||
| O.D. | mm | 1.0±0.03 | ||||
| Color | -- | Gray Brown Red Yellow Green Black White Blue Orange Pink | ||||
| Cabling 1 | Material | -- | 30#Coaxial*2C+28#*2C | |||
| Cabling 2 | Material | -- | NOUL 30#Coaxial*10C+28#*4C | |||
| Fill | Material | -- | Cotton | |||
| Taping | Material | -- | Tissue | |||
| Overlap | % | ≥25% | ||||
| Braiding | Material | -- | Tinned Copper | |||
| Construction | pcs/mm/c | 16/0.06/16 | ||||
| Coverage | % | ≥85% | ||||
| Jacket | Material | -- | TPE | |||
| Nom.thickness | mm | 0.55 | ||||
| Diameter | mm | 5.5±0.15 | ||||
| Color | -- | Black | ||||
| Marking | No Marking | |||||

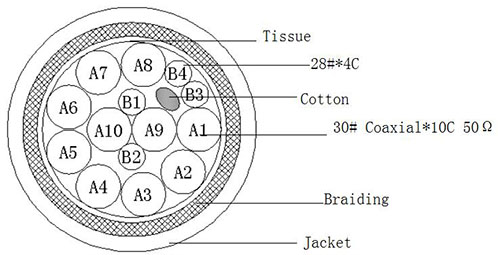

Cross-Section View :(end product)
30#Coaxial
Cross-Section View :(end product)
Color of jacket:
| Unit NO. | Color | Unit NO. | Color | Unit NO. | Color |
| A1 | White | A6 | Gray | B1 | Blue |
| A2 | Black | A7 | Yellow | B2 | Red |
| A3 | Blue | A8 | Green | B3 | Green |
| A4 | Red | A9 | White | B4 | Black |
| A5 | Green | A10 | Red |
性能管控標準
Attenuation/InsertionLoss
| Start Freq | End Freq | Spec Max | Spec Min | ||
| 1 | 1 | -- | -5.0 | ||
| 1000 | 1000 | -- | -5.0 | ||
| 2000 | 2000 | -- | -6.5 | ||
| 3000 | 3000 | -- | -9.2 | ||
| 6000 | 6000 | -- | -16.5 | ||
| 12000 | 12000 | -- | -290 | ||
| MHz | MHz | dB | dB | ||
AttenuationtoCrosstalkRatio(ACR)
| Start Freq | End Freq | Spec Max | Spec Max | ||
| 1 | 1 | -- | -30 | ||
| 1000 | 1000 | -- | -30 | ||
| 4000 | 4000 | -- | -20 | ||
| 7000 | 7000 | -- | -10 | ||
| 12000 | 12000 | -- | -5 | ||
| MHz | MHz | dB | dB | ||
DifferentialImpedance:100?±10?(cable)1~2.5 ns
100?±10?(CONN)0~1 nsOr100?±15?
withinsingleexcursionand duration< 150 psTr=75ps(10-90%)
DifferentialDelay:5.5 ns/m
Tr=75ps(10-90%)
Inter-PairSkew:500p
Tr=75ps(10-90%)
Intra-PairSkew:30p
Tr=75ps(10-90%)
CommMod_To_Differential_Convertion_SDC21 （0.1-12GHz）：≤-16dB
